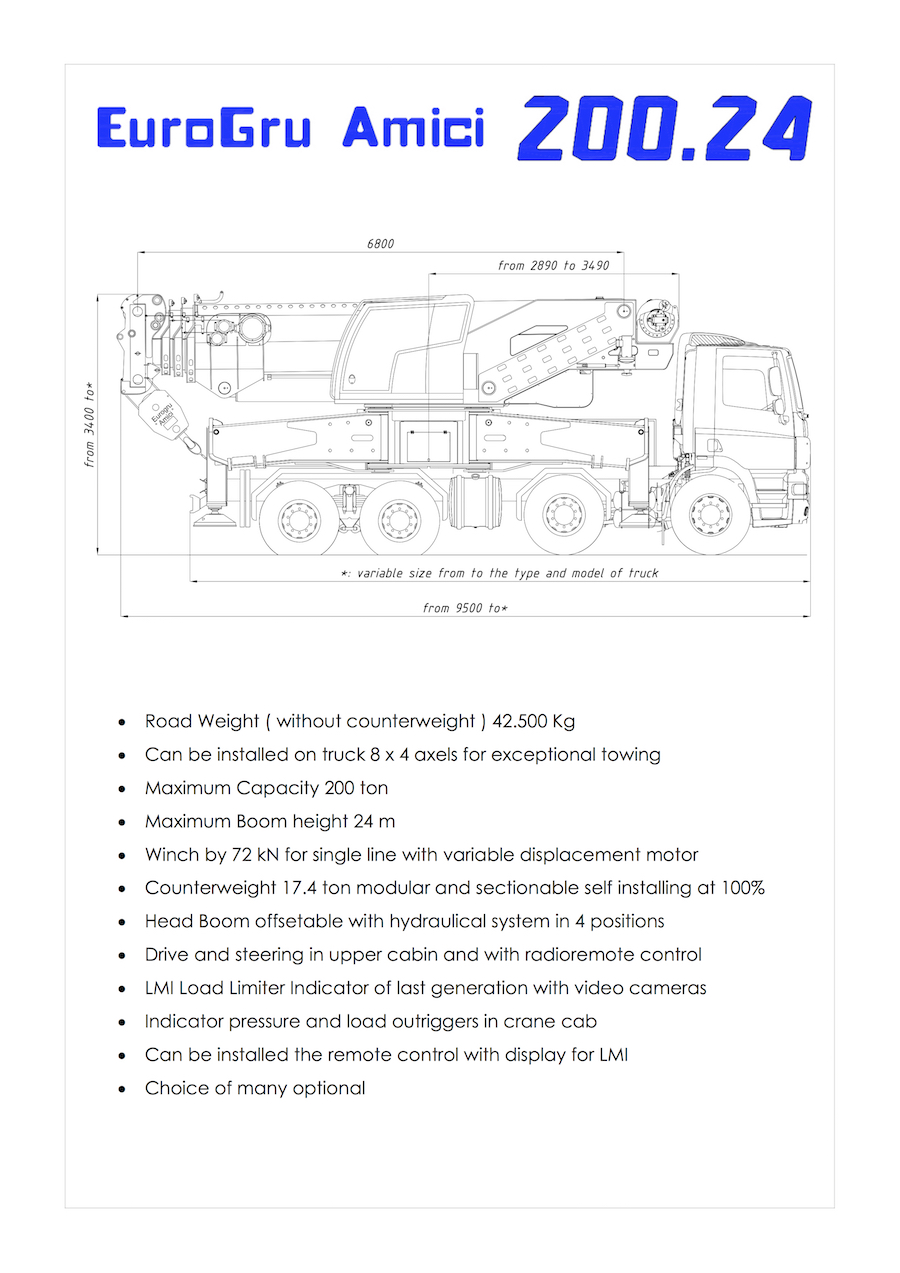

AUTOGRU 200.24

  • Road Weight ( without counterweight ) 42.500 Kg
  • Can be installed on truck 8 x 4 axels for exceptional towing
  • Maximum Capacity 200 ton
  • Maximum Boom height 24 m
  • Winch by 72 kN for single line with variable displacement motor
  • Counterweight 17.4 ton modular and sectionable self installing at 100%
  • Head Boom offsetable with hydraulical system in 4 positions
  • Drive and steering in upper cabin and with radioremote control
  • LMI Load Limiter Indicator of last generation with video cameras
  • Indicator pressure and load outriggers in crane cab
  • Can be installed the remote control with display for LMI
  • Choice of many optional
Autogru 200.24
Autogru 200.24

DETAILS

Model
200.24
Max Capacity
200.000 kg
Boom Height
6,80 - 24,00 metri
