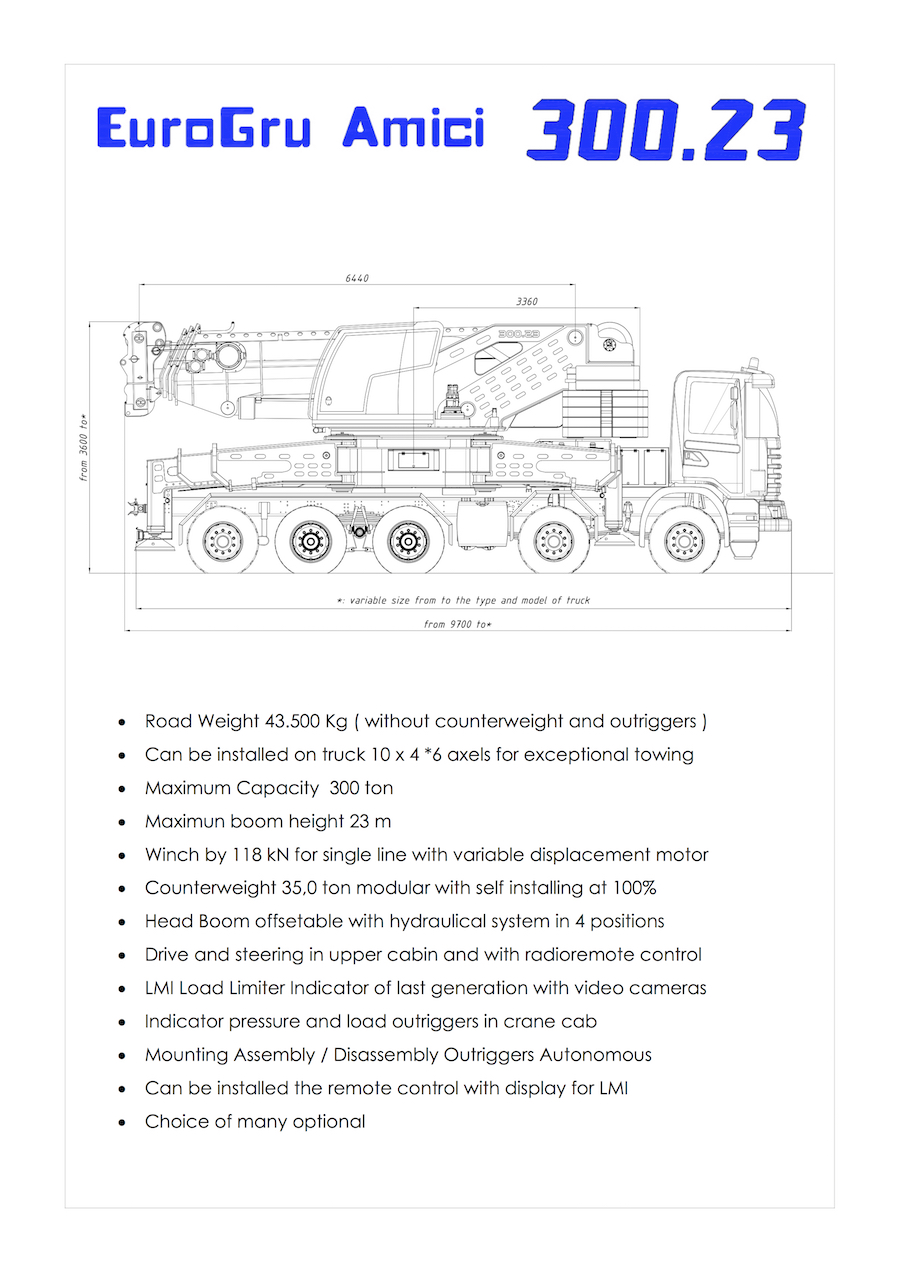

AUTOGRU 300.23

Crane installed on 8x4 or 10x6 commercial truck

• Road Weight 43.500 Kg ( without counterweight and outriggers )
• Can be installed on truck 10 x 4 *6 axels for exceptional towing

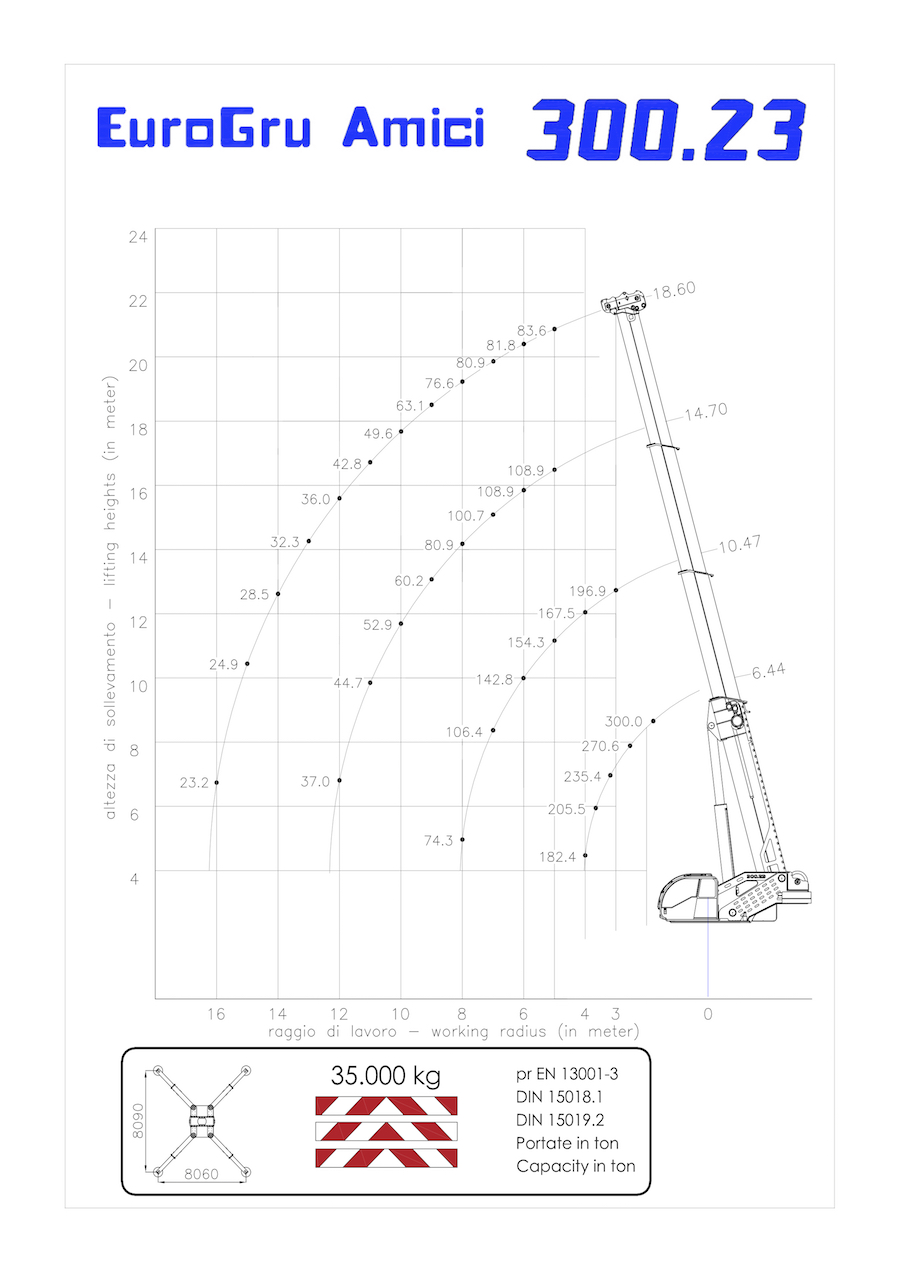

• Maximum Capacity  300 ton
• Maximun boom height 23 m
• Winch by 118 kN for single line with variable displacement motor
• Counterweight 35,0 ton modular with self installing at 100%
• Head Boom offsetable with hydraulical system in 4 positions
• Drive and steering in upper cabin and with radioremote control
• LMI Load Limiter Indicator of last generation with video cameras
• Indicator pressure and load outriggers in crane cab
• Mounting Assembly / Disassembly Outriggers Autonomous
• Can be installed the remote control with display for LMI
• Choice of many optional
